Shrink Packaging Machines


Shrink Packaging, single and multiple products, protection, allure, to prepare for sale, transportation, holding together, such as flexible special plastic films wrapped by the help of heat wrapping. This packaging is made by Shrink Packaging Machines.

Shrink Packaging Machines are generally divided into two.

1. Shrink Packaging Machines Using Centre Folded Shrink Film

2. Shrink Packaging Machines Using Single Fold Shrink Film



1. Shrink Packaging Machines Using Centre Folded Shrink Film

This type of machine uses a central folded shrink film. (Polyolefin Shrink film, PVC shrink film, Polyethylene (PE) shrink film). Generally There are 3 type of Shrink Packaging Machines that use Centre Folded Shrink Film

I. Manual Shrink Packaging Machines

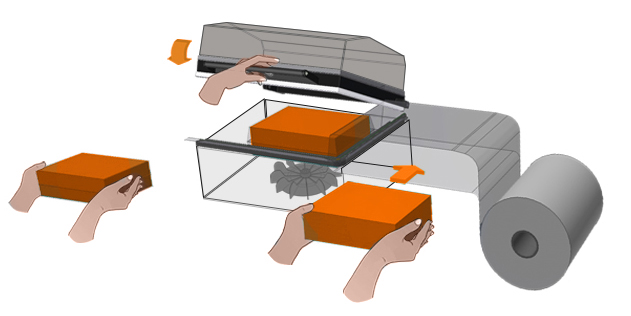

Works with an operator. It is a L sealer hood packer . Sealing (welding) and shrinking process in the same place. Practice  and easy to use. The working principle of Manual shrink Packing Machine is below





ii. Semi Automatic Shrink Packaging Machines

Works with an operator. The shrink tunnel and sealing  part is separated. The operator sealing firstly, and by entering the product heat tunnel with automatic conveyor then the shrink process is completed. The working principle of Semi automatic shrink Packing Machine is below





iii. Full Automatic Shrink Packaging Machines

Fully Automatic Shrink Packaging Machines are designed for large enterprises. They can be connected to the direct production line. It can also be fed its own conveyor. They make the shrink packaging by recognizing the product size automatically. There are 2 type of automatic machine;

L Sealing Full automatic shrink packing machine working principle is below.





There are 2 type of Side sealer shrink packaging machine . Intermittent and continous motions shrink packaging machine. The packing speed of teh continous motion model shrink packaging machine is 2 times faster than intermitten side sealer shrink packaging machine.

The working principle of Side sealer shrink packing machine is below.







The working principle of the continous motion shrink packing machine is below.







2. Shrink Packaging Machines Using Single Folded Shrink Film

Packaging for transporting. This type of machine uses single folded shrink film. (Polyolefin Shrink film, PVC shrink film, Polyethylene (PE) shrink film). There are 2 type of Shrink Packaging Machines that use Single Folded Shrink Film

I. Manual Polyethylene Shrink Packaging Machines

Works with an operator.Sealing and shrinking parts are seperated. The working principle of manual polyethylene shrink packaging machine is below.





ii. Automatic Shrink Packaging Machines

Fully Automatic Polyethylene Shrink Packaging Machines is designed for large enterprises. They can be connected to the direct production line. It can also be fed via its own conveyor. They make the shrink packaging by recognizing the product size automatically.There are 2 type of as front feeding and side feeding. Side feeder polyethylene shrink packaging machine also automatically grouping and packaging products.

The working principle of frontal feeder polyethylene shrink packaging machine is below.



The working principle of the side feeder polyethylene shrink packaging machine is below







The working principle of the side feeder polyethylene shrink packaging machine is below
